HISHINE® Dental Luna X-ray Film Reader LED Specific Wall Desk Mounting

HISHINE® Luna X-ray Film Reader LED Specific Wall Desk Mounting

Intended for brightenintg the x-ray film, it incorporates the advanced LED and backlighht source technology with over 100.000-hour service life. It guarantees even more intense uniformity, no dark, no flash, color stability, so that the screen is made brighther and softer.

Oveview

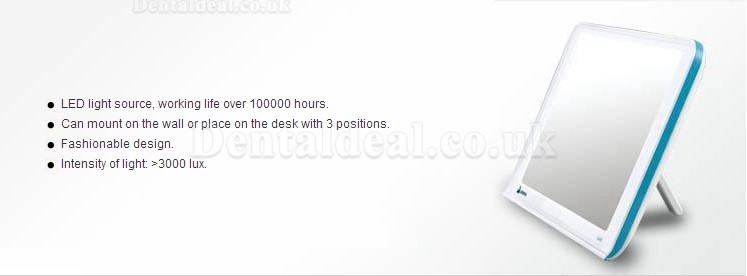

1) Fashionable design;
2) Intensity of light: >3000lux;
3) LED light source, working life over 100,000 hours.

Features

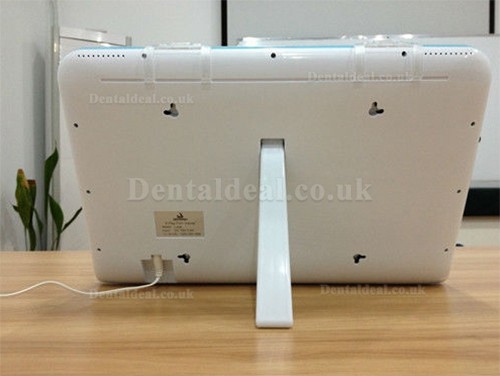

1. The Luna X-Ray Viewer may be used on the table, where it offers three leaning angle adjustments or hanging on the wall through the back orifices in a vertical or horizontal position (Fig. 2, page 2)
a. Flat Surface Use: Use the built-in holder in the back of the plastic housing, there are three angle adjustments, choose the better viewing position;
b. Wall Mounting: After defining the desired wall spot, mark the holes with a pen and drill them on the wall. To hang it horizontally leave a distance of 16.5 cm between holes or 14.5 cm to hang it vertically. Hang the viewer on the screws fixed to the wall. Note: Use 4 mm plugs and 2.5 x 25 mm screws;
2. Fit both plastic clips on the upper side of the screen. The side with only one central holder facing forward (Fig. 1, page 2);
3. Connect the power cable to the connector located in the back of the equipment and the other end (adapter) to the wall socket (Figs. 5 and 6, page 2);
4. Turn the Luna on through the On/Off switch located at the left side of the viewer (Fig. 4, page. 2);
5. Use the plastic clips at the top of the viewing area to hold the x-ray in place for visualization (Fig. 1, page 2);
6. When the diagnose is done, turn the Luna off through the On/Off switch again. At the end of the work day, disconnect the adapter from the wall socket.
7. This product is used in diagnostic imaging for viewing most types of x-rays as panoramic, cephalograms, periapical, interproximal, occlusal, carpal, sinuses and TMD among others. Follow the instructions presented in this manual regarding the proper use, precautions, care and storage.

Specifications
1. Input: 100 - 240 V AC
2. Output : 15 V DC - 0,8 A
3. Frequency: 50/60 Hz
4. Power: 10W
5. LED Lifespan: 2 LED bars (51 LEDs per bar) / 100.000hours
6. Temperature: 6500K
7. Illuminance: 6.000 Lux
8. Light: Cold, polarized light with no flickering
9. Stability: 2%
10. Uniformity: 0.7
11. Gross weight: 1.5 kg
12. Net weight: 1.1 kg
13. Screen dimensions (mm): 300 x 200
14. Equipment dimensions (mm) : 357 x 243 x 35
