Dental Digital X-Ray Sensor RVG Dental Intraoral Imaging System

Dental Digital X-Ray Sensor RVG Dental Intraoral Imaging System

Features：

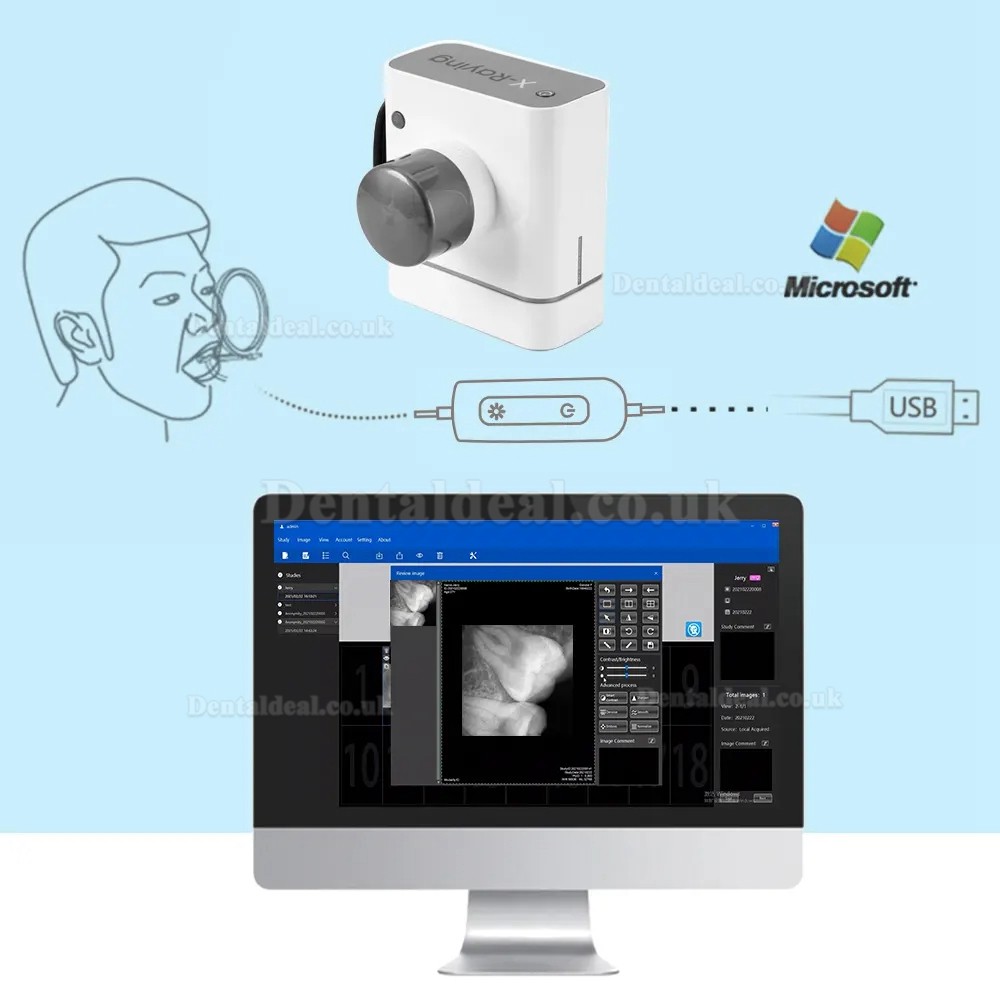

The product is mainly composed of a sensor, an adaptor, a USB connection cable and workstation software. Working together with an X-ray equipment, the product is intended to make X-ray radiography in dental clinics or veterinary clinics，Sensor size Suitable for child（adult single tooth）and pets.



Hardware Requirements：

Central Processor: Intel Core i3 or higher

Internal Memory: 4GB or higher

Hard Disk: 80GB or higher

Display: 1280X1024

USB interface: two

Keyboard: One

Mouse: One

Software Requirement

Operating Software：Windows 7 SP1,8,10 32/64bit

Runtime: .Net Framework 4.6 or higher, VC++ 2015


Software Requirement:
Operating Software：Windows 7 SP1,8,10 32/64bit Runtime: .Net Framework 4.6 or higher, VC++ 2015



Specification：

Product Name: Image RVG x-ray Sensor

Product Model：XVS2121

Operating Voltage:5VDC

Input power：500mW

Spatial Resolution：≥7Lp/mm

Low contrast resolution ：Able to display holes with 1mm, 1.5mm, 2mm and

2.5mm diameter on the 0.5mm-thick aluminium foil

Image uniformity ≤2%

Effective image area： 20.16*20.16mm

Sensor Size I：26.5mm×32mm×6mm

Sensor Size II：26.5mm×32mm×6mm

Adaptor Size：60mm×40mm×29.2mm

Total Cable Length: 3 m (sensor cable + control box cable to PC)

Warranty:1 Year

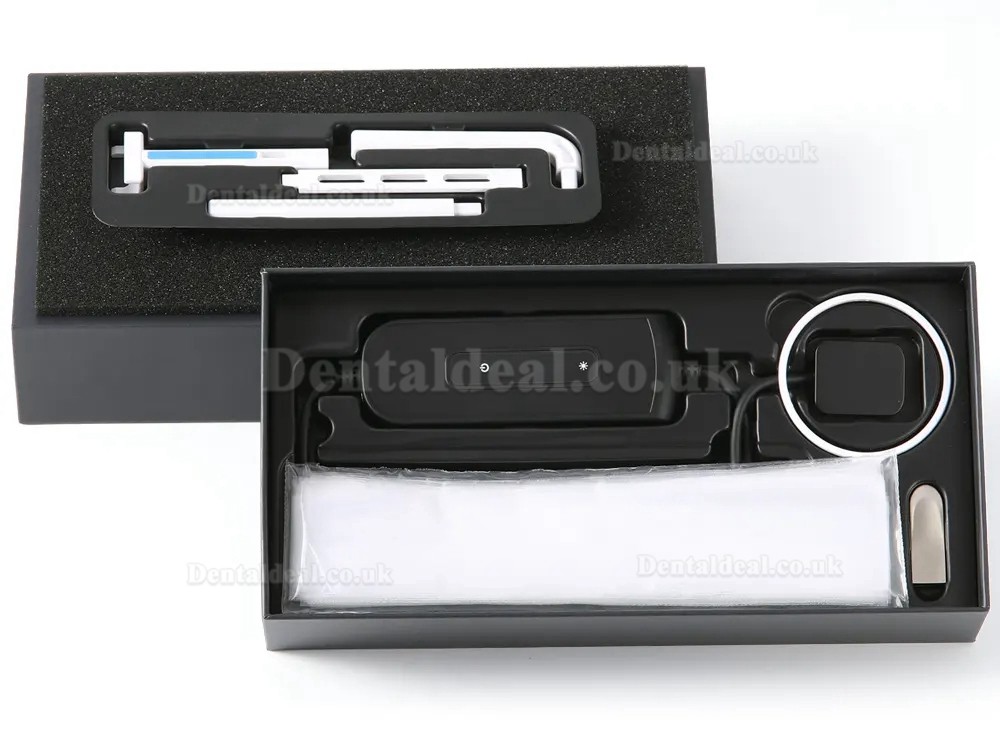

Accessories :

Digital sensor: 1 Set

USB cable :1 PCS

U Disk: 1PCS

Disposable protective sheath: 1 Box（500）

silicon loop: 1 PCS

Sensor holder: 1 PCS

Aluminum plate:1 PCS (40*40*6mm)
