Runyes DR730 Dental X-Ray RVG Sensor Intraoral Sensor Digital Imaging System

Runyes DR730 Dental X-Ray RVG Sensor Intraoral Sensor Digital Imaging System

Specification:
Model: DR730
Chip type: CMOS APS
Optical soldering panel: Yes
Scintillator: GOS 675mm²
Size: 27.5x39mm
Effective area:22.5x30mm
Pixel size: 18.5um
Picture pixels: 1.9M (1600*1200)
Sensor thickness:6mm
Interface:USB2.0
Pair resolution:
Theoretical value: 27lp/mm
Actual value: 12-14lp (GOS)
Other/Additional: TWAIN Driver
Operating system: Windows XP/Win7/Win8/Win8.1/Win10 (32bit&64bit) has been certified by Microsoft;

Sharing the Sensor Between Rooms：
You can share the sensor between several rooms to provide access for several dentist based on Handy Server software. The computer must have the HandyDentist dental imaging software, and HandyServer must installed in one computer.
To share the sensor between several computers, move it from room to room. When you connect the sensor to a USB 2.0 port on the computer, the sensor is recognized automatically and is operational.
To share data between rooms, you can connect them to remote data---HandyServer database. The HandyDentist dental imaging software needs only to access a shared database on the same computer or on a remote computer, which means HandyServer database.


Operating conditions
Environment Temperature : +10℃~+40℃
Environment relative humidity : ≤95%;
Air pressure : 860hPa~1060hPa;

Transport and Storage conditions：
Environment Temperature: -25℃~+60℃;
Environment relative humidity : 10%~93%;
Air pressure : 860hPa~1060hPa;

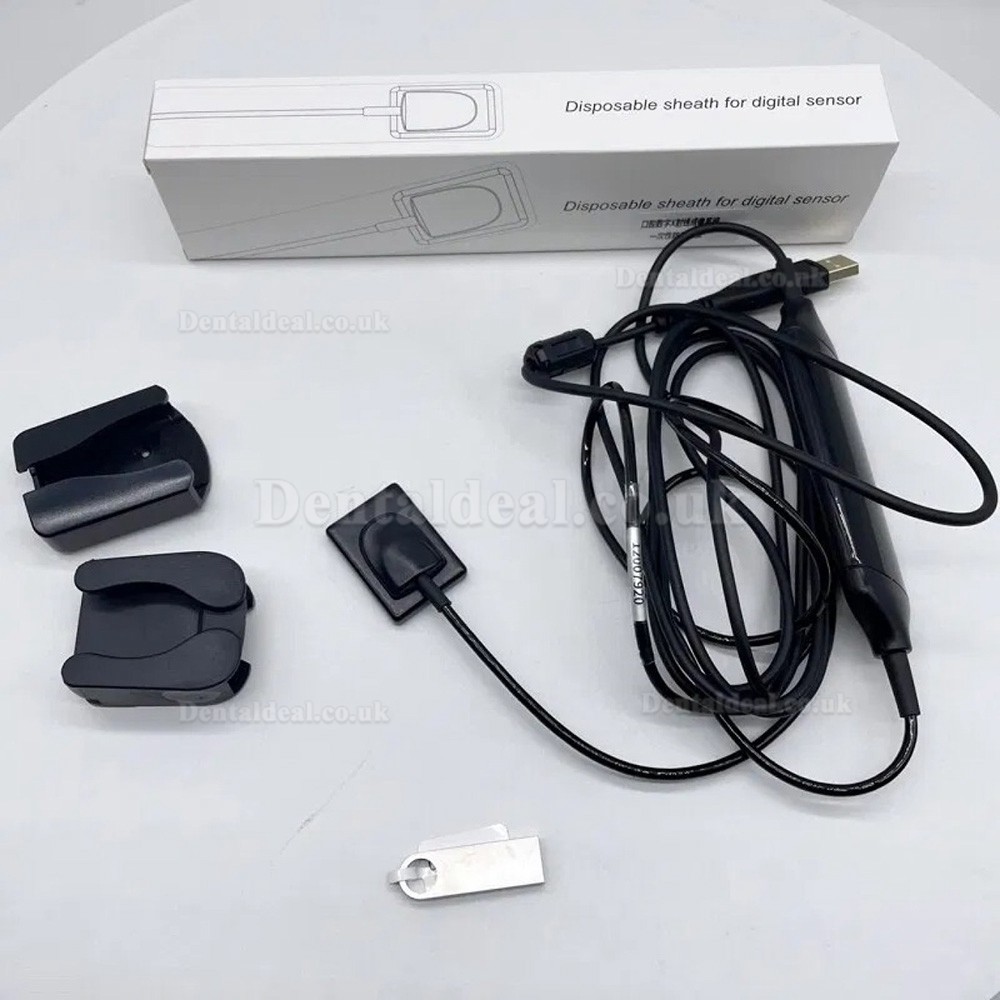

Packinglist：
1. Manual 1pc

Technical parameters of DR730 and DR750 :
