RAY-200 Portable High-Frequency Handheld Dental X-Ray Device Intraoral Imaging System

High Frequency Handheld Portable Dental X Ray Machine Digital Intraoral Imaging System RAY-200

Features:
Compatible with digital sensors, X-ray film, and image plate scanners.

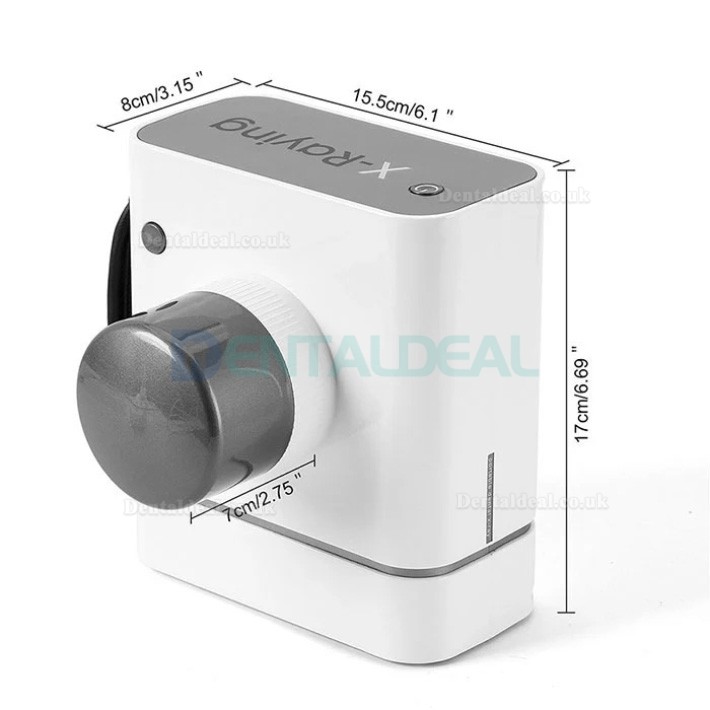

Small Size and portable.
This unit is high frequency machine.
The body is small, light in weight, and the radiation leakage is less than 20μgy/h.
It has high resolution image quality, portable storage, save more space.
It uses high frequency and DC international power supply.
All of the components installed in the central PC board concentrated. Shock,set-up, electron tubes, all of them are insulation vacuum, sealed stereotype protection.
Different exposure times are preset for adults and children.
The battery is durable, it can take about 4 hundred images after fully charged.
Large-capacity battery, capable of 400 exposures on a single charge.

Warning:
After turning on the machine, wait for 1 minute, the voltage can be stabilized before normal use; After each photo taking, you need to wait for the normal value to return before taking a normal photo.

Technical Parameter:
Tube Voltage:60KV
Tube Current:2mA
Exposure Time:0.1~2.0s
Frequency:30KHz
Rate Power:120VA
Distance From Skin To Cone:118mm
Tube Focus:0.4mm×0.4mm
Battery:DC14.8V 2200mAh
Charger Input Voltage:AC100V-240V±10%
Output Voltage:DC16.8V
Ambient Temperature:5℃~40℃
Relative Temperature:<75%RH

Packing List
Main Body:1Pc
Charger:1Pc
User Manual:1Pc;
