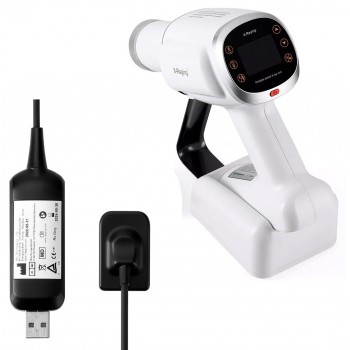

Portable High-Frequency Dental X-Ray Machine with RVG X-Ray Sensor Kit

High Frequency Handheld Portable Dental X Ray Machine ＋ RVG X-ray Sensor Kit

Dental Portable High Frequency X-Ray Unit Digital Intraoral Imaging Machine

Features:
1.Compatible with digital sensors, X-ray film, and image plate scanners.
2.Portable and nearly no radiation.
3.The body is small and light in weight.
4.It has high resolustion image quality, portable storage, save more space.
5.It uses high frequency and DC international power supply.
6.All of the components installed in the central PC board concentrated. Shock,set-up, electron tubes, all of them are insulation vacuum, sealed stereotype protection.

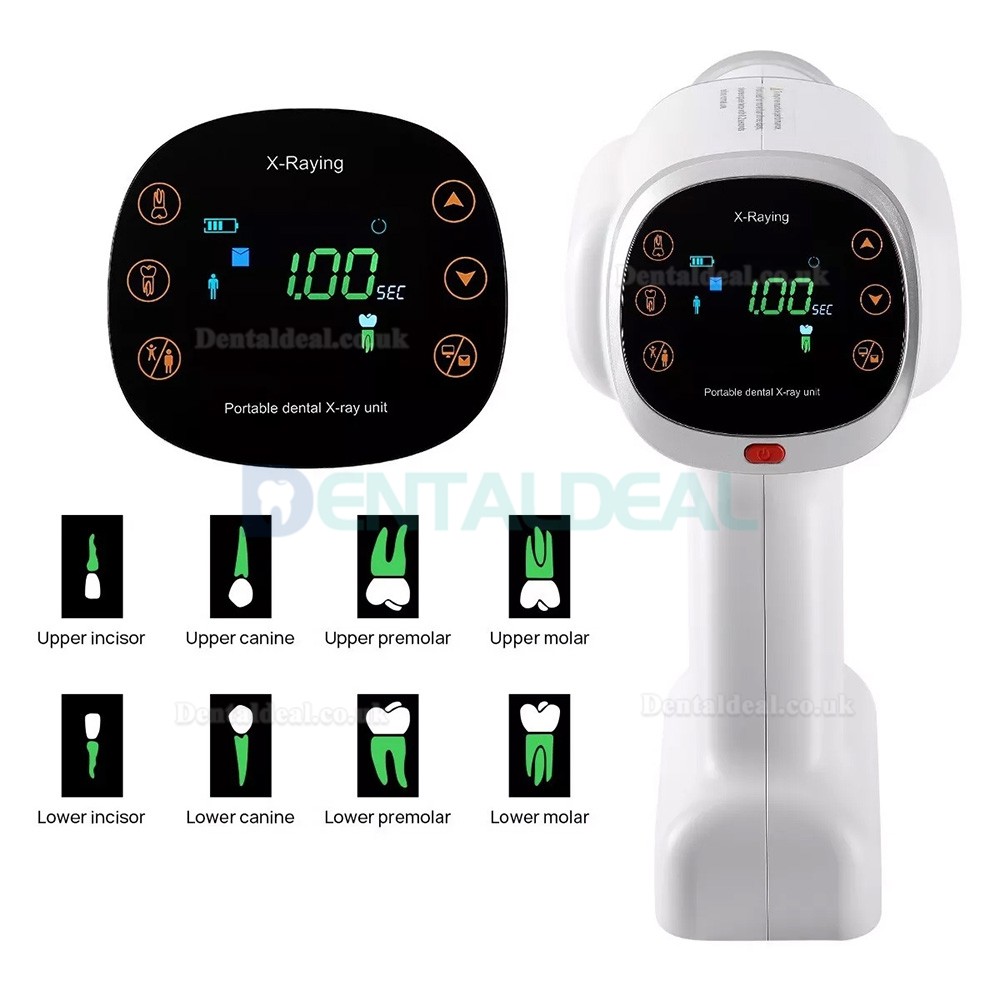

7.Different exposure times are preset for adults and children.
8.The battery is durable, it can take about 2 hundred images after fully charged.



Technical Parameter:
Tube voltage：60KV
Tube current：2mA
Exposure time：0.1~2.0s
Frequency：30KHz
Rate power：120VA
Distance from skin to cone：150mm
Tube focus：0.4mm×0.4mm
Battery：1550mAh
Charger input voltage：AC110V-240V
Output voltage: DC14.8-16.8V
Ambient temperature: 5℃~40℃
Relative temperature: <75%RH
Net weight：1.7KG


Packing List:
Main body 1pc
Charger 1pc
User manual 1pc;

Option:

Shielding Plate(if you need, you can choose x-ray unit + shielding pate model);

Dental Digital X-Ray Sensor RVG Intraoral Sensor System HD Image With Software S1/S2

Features:
1. If there's only one device, you may select “Single-User” installation. If the sensor is connected to multiple device, select “Host” for the device connected with the sensor and other devices select “Extension” to install, to achieve multi-machine sharing.

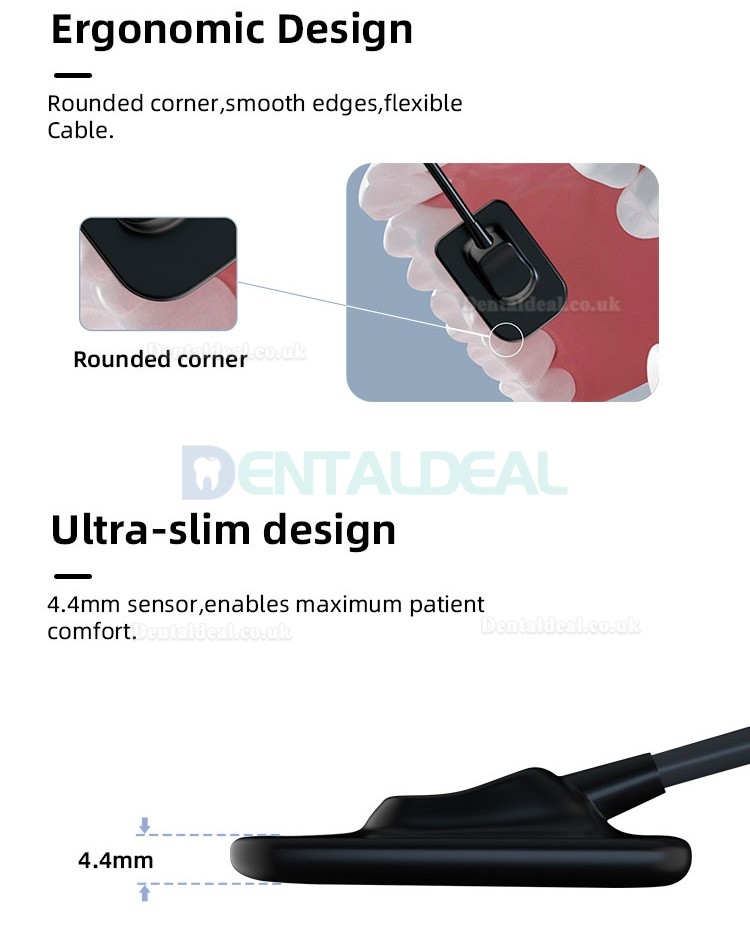

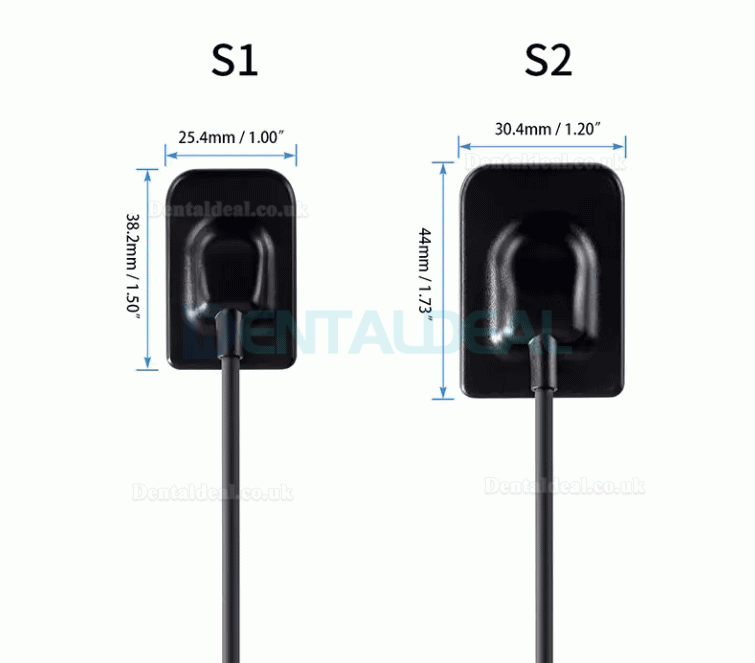

2. The sensor is available in two sizes, with rounded corners and a thickness of only 4.4mm, making it more comfortable to use.

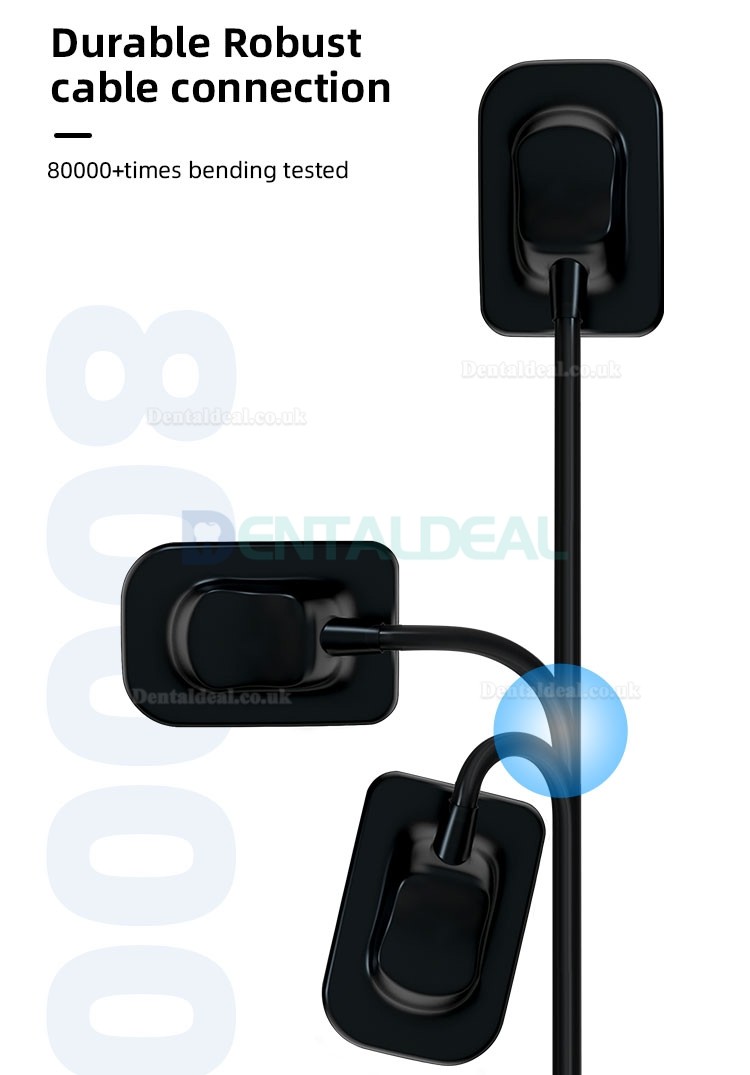

3. Cables are durable,have been tested for 80,000+ bends.

4. CMOS detector technology with CSI scintillator. Ensures high resolution Low dose clinical imaging.

5. Compatible with different X-ray generators, easy to use.

6. No consumables and more cost-effective than traditional film.



Hardware and software requirement:

Processor :1.0GHz or above

Memory :2GB or above

Hard disk :64GB or above

Display resolution :1440*900 or above

USB port :USB2.0

Operating system :Windows 7,Windows10,Windows11;

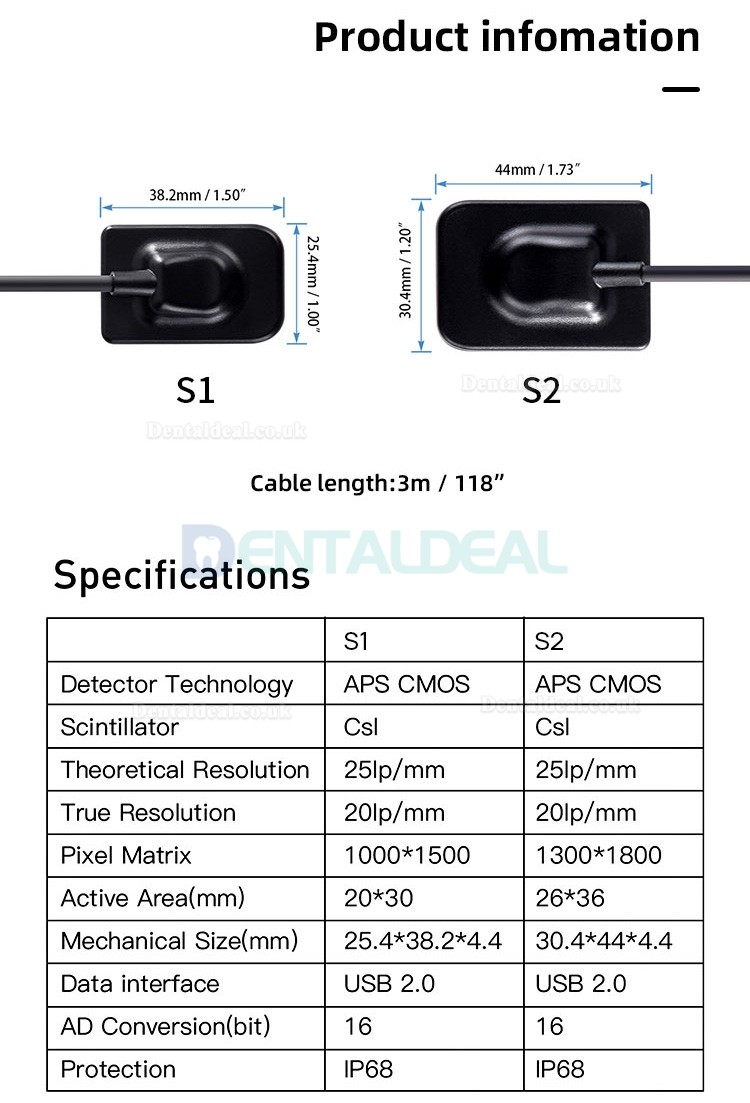

Technical parameter:

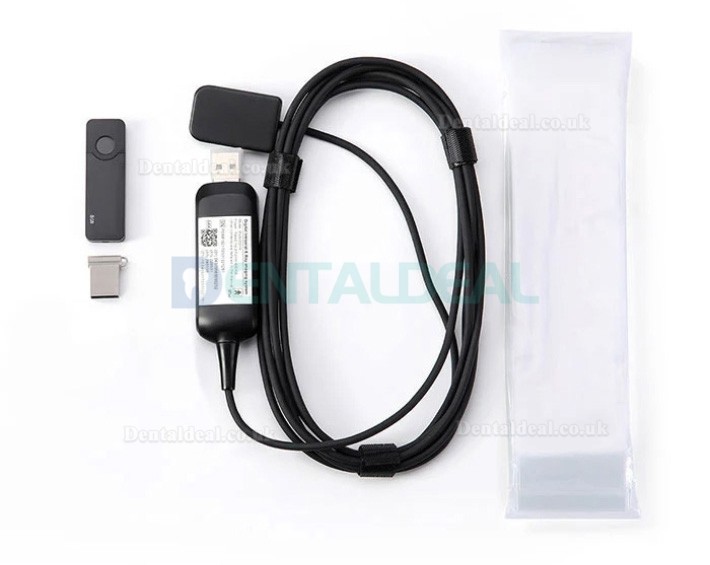

Packing list:
1. Sensor
2. USB flash disk (Software)
3. Protective sleeve;
