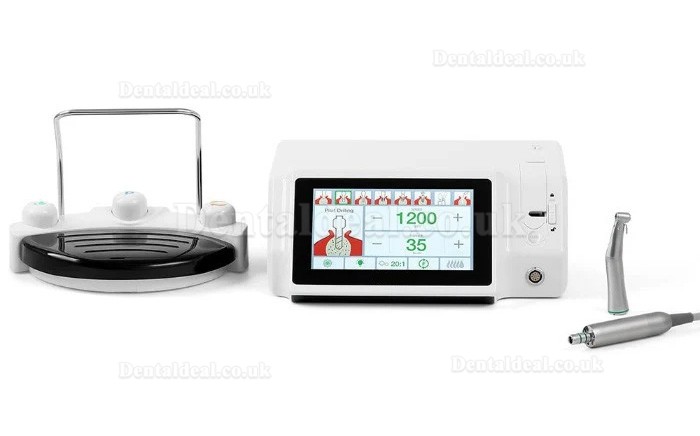

YAHOPE IMPLANT Surg Dental Brushless Surgical Implant Motor System with 20:1 LED Contra-angle

YAHOPE IMPLANT Surg Dental Implant Machine Brushless Surgical Motor with 20:1 LED Contra-angle

It includes multiple functions such as implantation, restoration, extraction of impacted teeth, and orthopedic surgery. The device can be connected to physiological saline or sterile water externally to prevent backflow and reduce cross-contamination. Incorrect operations will be promptly reminded, ensuring better overall machine protection.


Features:
1. Color touch screen
The large size screen ensures that the treatment parameters are visible. Graphical operation steps, intuitive and clear,easy operation,simple and flexible,humanized touch design,responsive.

2. Multi function
For implant,restoration,extraction of impacted teeth, orthopaedic surgery.
8 Program memory function for setting setting speed, torque,compatible with various contra angle or straight handpiece ,such as 20:1 16:1 27:1 4:1 3.2:1 1:1 1:3 1:4.2 1:5

3. Motor Auto-Calibration function (implant).
Operate safely with high precision thanks to the surgical motor,low noise and vibration,powerful.

4. A new generation of motors with torque up to 80Ncm.
Stale performance brushless motor, high torque and wide speed range for all kinds of treatment.

5. LED lighting ensures visibility.
Helps clinicians focus more on the treatmenet area and make surgery more accurate.

6. Illumination and sound can be adjusted.

7. Flexible multi function foot pedal.
Could achieve the most of operating functions.

8. Smooth Irrigation Pump.
There are 6 gears water flow,click the button each time, increase water volume .

9. Built in user manual.
Simple and convenient operation.

10. Motor and cable can not be sterilized at high temperature and pressure.

11. Built in common error prompt and alarm interfaces.
Timely remind the wrong operation, better protect the machine.

Technical:
Maximum power:150W
Power supply:AC100-120V/200-240V
Torque:5-80Ncm
Motor speed:300-40000rpm
Infusion flow(Maximum):135ml/min
Surgical brushless motor
8 setting programs
20:1 Fiber Optic Contra Angle
LED light source illumination

Warranty
Main unit: 2 years
Motor and contra angle: 1 year

Package:
Implant unit*1
E-type motor*1（Cannot be autoclaved）
LED 20:1 contra angle handpiece*1
Foot pedal*1
Motor stand*1
Hanger*1
Power cord*1
Motor cap *1
Irrigation tube*2
English instruction manual*1;
