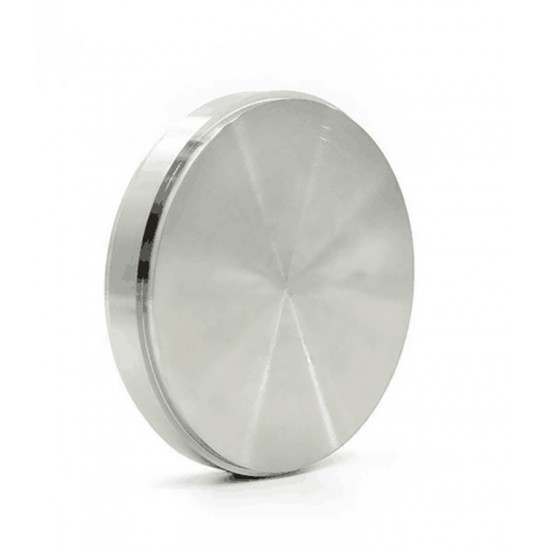

Dental Milling Titanium Disc Block Fit Zirkonzahn System Grade 2/Grade5

Dental Milling Titanium Disc Block Compatible with Zirkonzahn System Grade 2/Grade5

This Dental Titanium Blocks not only make us say goodbye to tradational heaping-wax,embedding,casting and polishing and so on but also make the PFM progress easily.Moreover,reduce the possibility of distortion then can improve the productive efficiency. Reliable abrasion resistnace and biocompatibility features

The Titanium blocks details are as following:
1.Diameter:98/95mm(Zirkonzahn system)
2.Thickness:10/12/14/16/18/20/22/25mm

Advantage:
it is more bio-safe, better casting property and reliable polishing property.


Technicial:
Titanium composition             Grade 2
Composition                             Specifications
Titan >99%                               Density: 4.51g/cm3
Fe 0.30%                                   Vickers Hardness : 145MPa
C 0.01%                                     E-module: 105kN/mm2
N 0.04%                                    Yield Strength: 275MPa
O 0.35%                                    Tensile Strength: 345MPa
H 0.01%                                     Elongation at break: 20%
CTE: 9.6*10-6/m Celsius


Titanium composition                Grade 5
Composition                                Specifications
Titan 90%                                      Density: 4.43g/cm3
Fe 0.13%                                      Vickers Hardness : 353MPa
Al 6.0%                                         E-module: 114kN/mm2
V 4.1%                                          Yield Strength: 836MPa
O 0.1%                                          Tensile Strength: 897MPa
H 0.001%                                     Elongation at break: 12%
N 0.01%                                       CTE: 10.3μm /K 25-500° C


Specification:
