MS135 Portable Pure Air Fume Extractor Soldering Welding Smoke Purifier Filter Double Head

Portable Pure Air Fume Extractor Soldering Welding Smoke Purifier Filter Double Head MS135

Features:

1.Double-headed portable size

2.Three-layer filter

3.Horizontal A4 smoking area

4.It can rotate 360° freely.

5.Working noise 55db-65 db

Benefits for you:

1.Double-head portable size design, can be replaced according to different work sites. Double-head smoking makes it easier to use.

2.Three-layer filter element: First layer: Filter PM50, material: filter cotton. Second layer: PM0.5 filter, material: PP filter. The third layer: adsorption of harmful gas, body material: composite carbon filter.

3.Each side of the A4 size smoking area can absorb most of the gas produced by the work product.

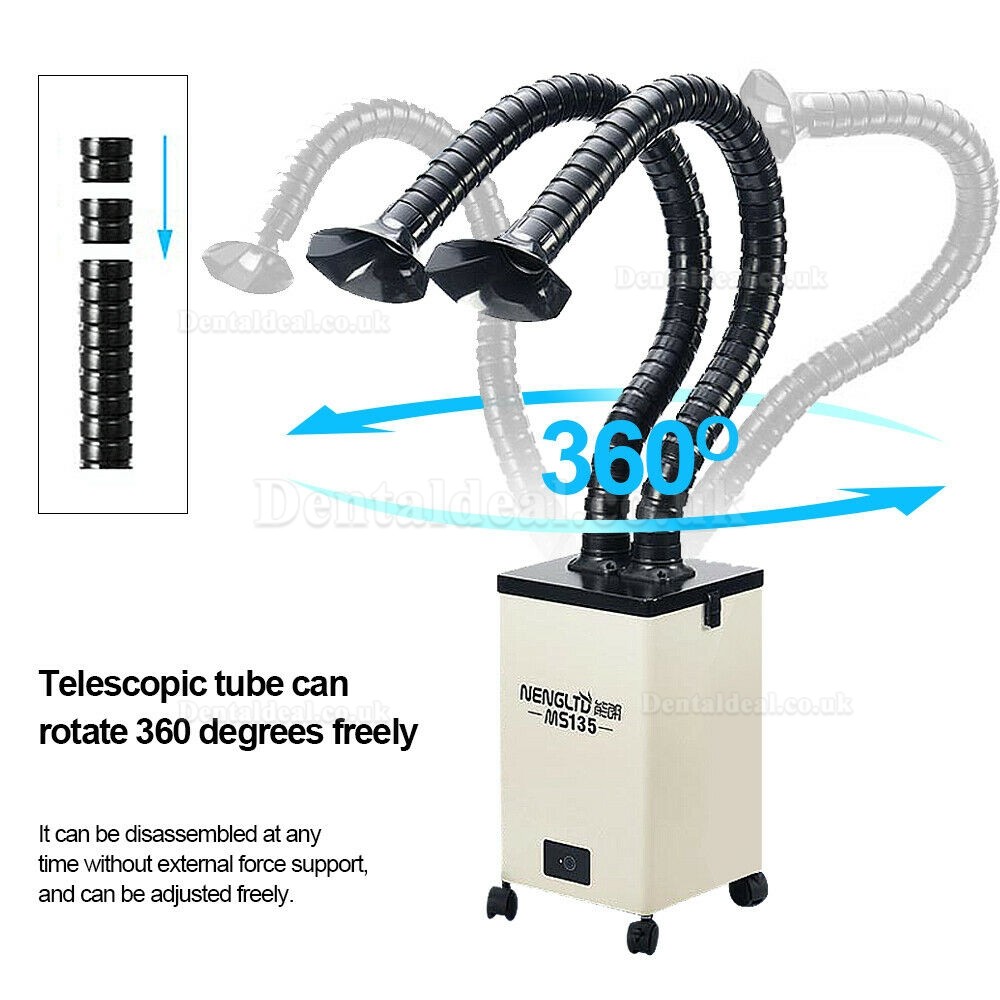

4.The smoking tube adopts bamboo design and can rotate at any angle of 360°. Can be applied to a variety of workplaces.

5.When the machine is working: the noise is 55db-65 db. No noise pollution will be given to workers.



Applications:

Used in workshops, DIY work, mobile phone repair, electronic product repair. In the soldering iron solder, laser marking, circuit board welding, etc.



Specification:

Name：Double head smoke filter

Model：SG-YWGLQ-02-110V

Voltage：110V

Power：135W

Air volume：2*125m*3/H

Noise：65~55db

Air inlet diameter：2*φ75mm

Number of filter layers：3 layers

First filter：Filter PM50

Second filter：Filter PM0.5PP medium efficiency filter

Third filter：Adsorption of harmful gas composite carbon, high efficiency filter

Weight：14KG

Dimensions：26*26*48cm



Technical Support:

First layer filter: 30-60 days to replace

Second layer filter: 4-7 months replacement

Third layer filter: 6-12 months replacement

All Products from the factory will be provided for one year warranty after sales and lifetime technical support.


Shipping List:

1PCS Fume extractor

2PCS Telescopic tube

1PCS Smoking Cover

1PCS Instruction manual

1PCS Power cable

1PCS Three-layer filter
