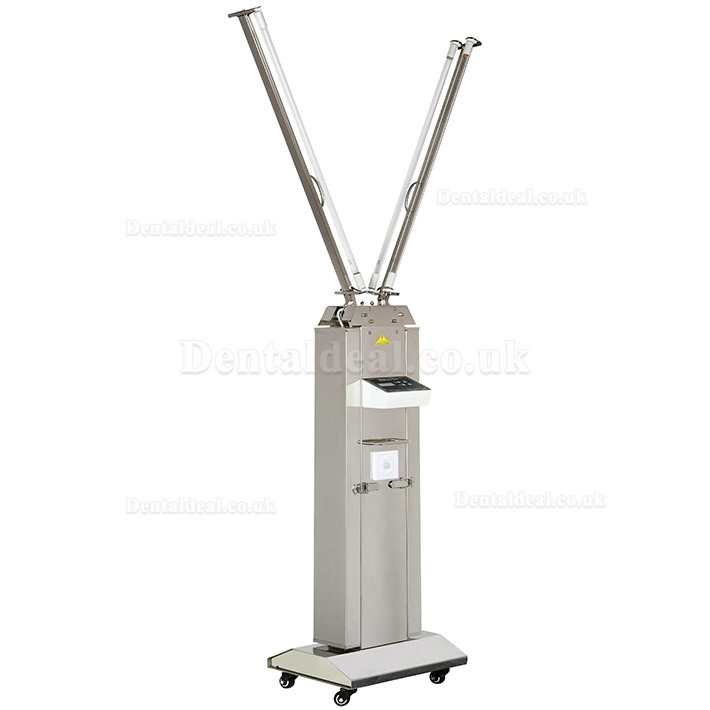

FY Mobile UV+Ozone Disinfection Lamp Stainless Steel Trolley With Infrared Sensor 120W-220W



FY-30FSI/ 50FSI (Four Tube Stainless Steel UV Lamp Trolley with Sensor) UV Room sterilizer FY-30FSI/ 50FSI,has 4 pieces of 30 watts/ 55watts UV lamps, emits a high intensity of ultraviolet light to the surface of the room, it can quickly and effectively sterilize all surfaces and air in a few minutes. Equipped with a timer of 0-1440 minutes, it is simpler and safer to use. The sterilizer is not only suitable for hospitals, but also widely used in schools, hotels, clinics, homes, cinemas, food manufacturing companies and offices.



This product is made of stainless steel,with its four-tube structures, but also can be used independently.



1.Tube Power:≥30W×4 / 55W×4

2.Number of tubes:4

3.Applicable static area:≥60m2

4.Voltage:220V±10%,Frequency:50Hz±10%

5.Input power:180VA

6.UV wavelength:253.7nm

7.Irradiance:≥428uw/cm2

8.It is movable and foldable,the tube could be concealed inside,and adjusted to various angles:30°,60°,90°,135°,180°.

9.It is equipped with a timer equipment with the time limitation of 0-1440 min.



1.Install the base with location hole and reed.

2.Open the protection door.

3.Lift the lamp arm and adjust to 90,135,190 degrees.

4.Insert the plug and press ‘ON’ button ,adjust 0-120mins timer.

5.Leave the room right now.

6.After finishing sterilization,press ‘OFF’ button.

7.Adjust timer to ‘OFF’.

8.Hold down the ‘adjustable button 3’ to adjust lamp arm to the box .

9.Close the protection door.
