Dental R-Smart Plus Endo Motor with Apex Locator Handpiece 2 in 1 OLED Screen

Dental R-Smart Plus Endo Motor with Apex Locator Handpiece 2 in 1 OLED Screen

Endo Motor is a supporting device of endodontic treatment, through enlarging root-canal in the process, helping dentists to finish the endodontic treatment.

Device Features:

a) With Multi-Frequency length measuring technology and the function of root-canal length measuring and enlargement.

b) Ultraprecise motor originating in German; Large colorful OLED screen, all angles visible.

c) Four operation models and six functions including Reciprocating motion, Automatic deceleration in apical zone, Automatic inversion and stopping in apical zone, Automatic start/stop of motor, Automatic inversion of torque, Both root-canal length measuring and nlargement.

The main technical specifications

1.Model: R-Smart Plus

2.Dimensions: 135mm×100mm×115mm

3.Weight:347g

4.Battery: 7.2V/1400mAh

5.Adapter: ~100V-240V 0.8A 50Hz/60Hz

6.Revolving speed: 200~600 rpm

7.Torsion: 0.6~4.0 N•cm

8.Buzzer alert: The buzzer will alert when the file is less than 2mm closed to the apex.

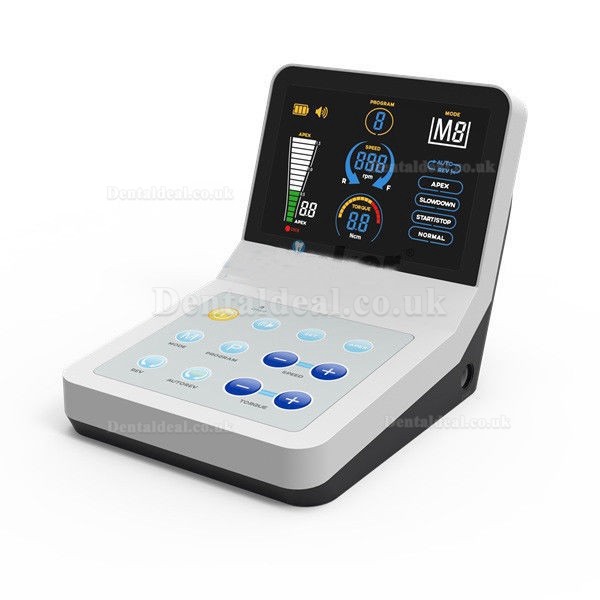

Product appearance structure

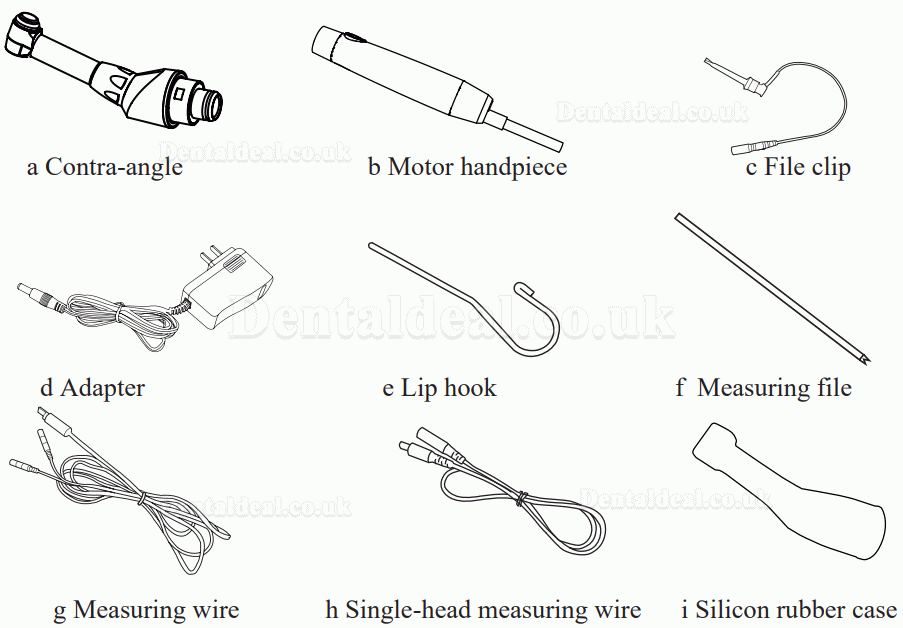

The figures of the main accessories.

Connecting the Contra-angle and Handpiece:

Explanation of connecting the contra-angle and handpiece

a) Before using this instrument, clean all the parts which may contact with patients.

b) Only match the locating points of both contra-angle and handpiece, they can connect smoothly.

Explanation of operation panel:

Explanation of LCD screen:

Specific Instructions

POWER: Switches the device on or off (LCD screen lights up or goes out)

VOLUME: Adjusts the sound volume or mute

STORAGE: Saves the current setting data of speed, torque, auto reverse and root tip limit value into program

APEX SETTING: Sets the root location (in M4 mode, file will be auto reverse when arrives the pre-set root location )

MODE: Switches the 4 operation modes

M1: Only root-canal length measuring

M2: Only root-canal enlargement

M3: Reciprocating rotary motion

M4: Both root-canal length measuring and enlargement

M5: Both reciprocating rotary motion and length measuring.

PROGRAM: Switches the programs and show the data from corresponding ones on screen.

SPEED SETTING: 200~600 rpm

TORQUE SETTING: 0.6Ncm-4.0Ncm

MOTOR WORKING MODE: Switches the 3 operation modes of file

File will stop when the stress is more than setting torque data.

When the stress is more than setting torque data, file will autoreverse. If remove the stress, file will stop.

When the stress is more than setting torque data, file will auto reverse. If remove the stress, file will forward roll again.

Manual forward or reversal switch: Change the rolling direction once press.

Handpiece Bottom: Control the handpiece to work or stop with two modes:

 a) Short pressing for working, again for off.

 b)Continuous pressing for working, releasing for off.
