Dental Ultrasonic Piezo Scaler Handpiece Tips Compatible EMS Woodpecker

Dental Ultrasonic Piezo Scaler Handpiece Tips Compatible EMS Woodpecker Dentist

Features:

1. One-touch foot pedal,sensitive treatment.

2. NC switches can be used to control all functions,esay to operate.

3. Detachable handpiece can be 35℃ and 0.22MPa autoclave sterilization and to effectively prevent cross-infection.

4. SKU: YS-E-CS-A(1)-US YS-E-CS-A(1)-EU

Specifications

1. Type of protection against shock:Class II,with transformer

2. Degree of protection against electric shock: Applied part type B

3. Degree of protection against harmful ingress of water: Unit lp40,Transformer Ip20

4. Mode of operation: Continuous operation

5. Conditions for use:+10℃ +40℃，30%-75%relative humidity

6. Stroage and transport conditions:+10℃ +40℃，10%-95%relative humidity

7. Supply voltage: DC24V,1A

8. Ultrasonic output characteristics:
Maxium output power with load 12W
Frequency:25-35KHz 1-5 bar
Input: AC100-240,50-60Hz
Out put:DC24V

9. Transformer:
Main vibration offset:0.05-0.15mm
Semi-offset force:no less than 0.5N

10. Measurement: 200×140×160mm

11. Net weight: 0.8kg

12. Gross Weight: 1.0KG

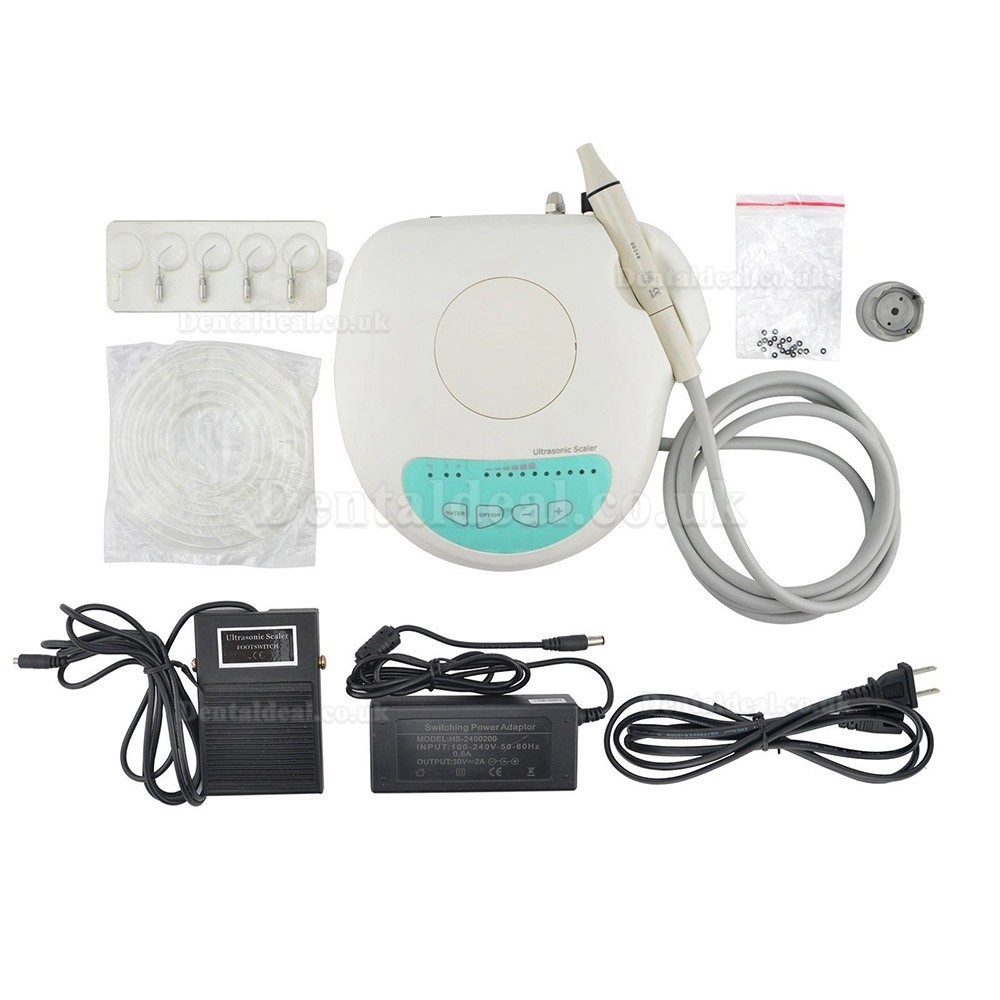

Content:

1)Foot pedal　　　1pc

2)Water Pipe　　 1pc

3)Charger　　　　1pc

4)Working tip 　　(G1,G2,G4,P1 1piece each)

5)Spanner　　　 1pc

6)0-ring　　　　　20pcs
