Zoneray HL-WD-II LCD Dental lab Spot Welder Welding Machine Orthodontic Heat Treatment

Zoneray HL-WD-II LCD Dental Spot Welder Welding Machine Orthodontic Heat Treatment

Features

Storage condition: temperature -10℃~55℃ Relative humidity ≤80%

Production standard number: Q/ZRX003-2005, It has TÜV ISO13485、CE Certificate.

HL-WDIII Spot welder also can be used to heat treatment to the orthodontic materials. The material for welding and heat treatment is stainless steel wire of the thickness 0.2-1.8mm.

Main characteristics:

① Adopt microprocessor control system, reliable quality, and high control precision.

② Adopt digital display functional mode and power parameter, through membrane button to adjust the parameter, its convenient and concise.

③ Safety feature; it has overheating protection system, there's indicator and alarm function with sub-pressure, overpressure and improper operation.

④ With the welding parameters memory function, when switch on, it will automatically shows the same parameters as the last set, so it's no need to adjust parameter again next time at the same condition.

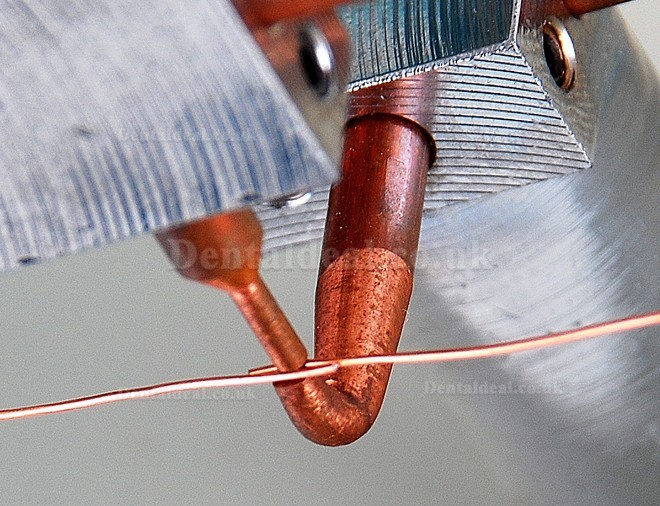

⑤ Welding electrodes can be chosen with different combination, it's suitable for the different weldment.

⑥ The machine has various functions as spot welding, braze welding and heat treatment.Can use function clamps to do heat treatment.

Main technique parameter:

① Power supply:  110V/220V, 60HZ/50HZ

② Power: maximum current 20A

③ Transformer output power: 2000W, output voltage: 5V

④ Incorrect operation alarm: when operation condition don't accord with SET mode, the display shows Error beep.

⑤ Security type: belongs classⅠ, type B

⑥ Transformer overheating protection: 85℃

⑦ Energy regulation:

Spot welding (dxx) 1~30

Braze welding (q_x) 1~9

Heat treatment (h_x) 1~9

⑧Dimensions of weldment: Ф0.2mm~1.8mm stainless steel wire

⑨Fuse: Ф5×20mm, 20A

⑩Environment conditions: temperature 5℃~40℃ Relative humidity ≤80%
